Ursa User Guide

Ursa System Overview

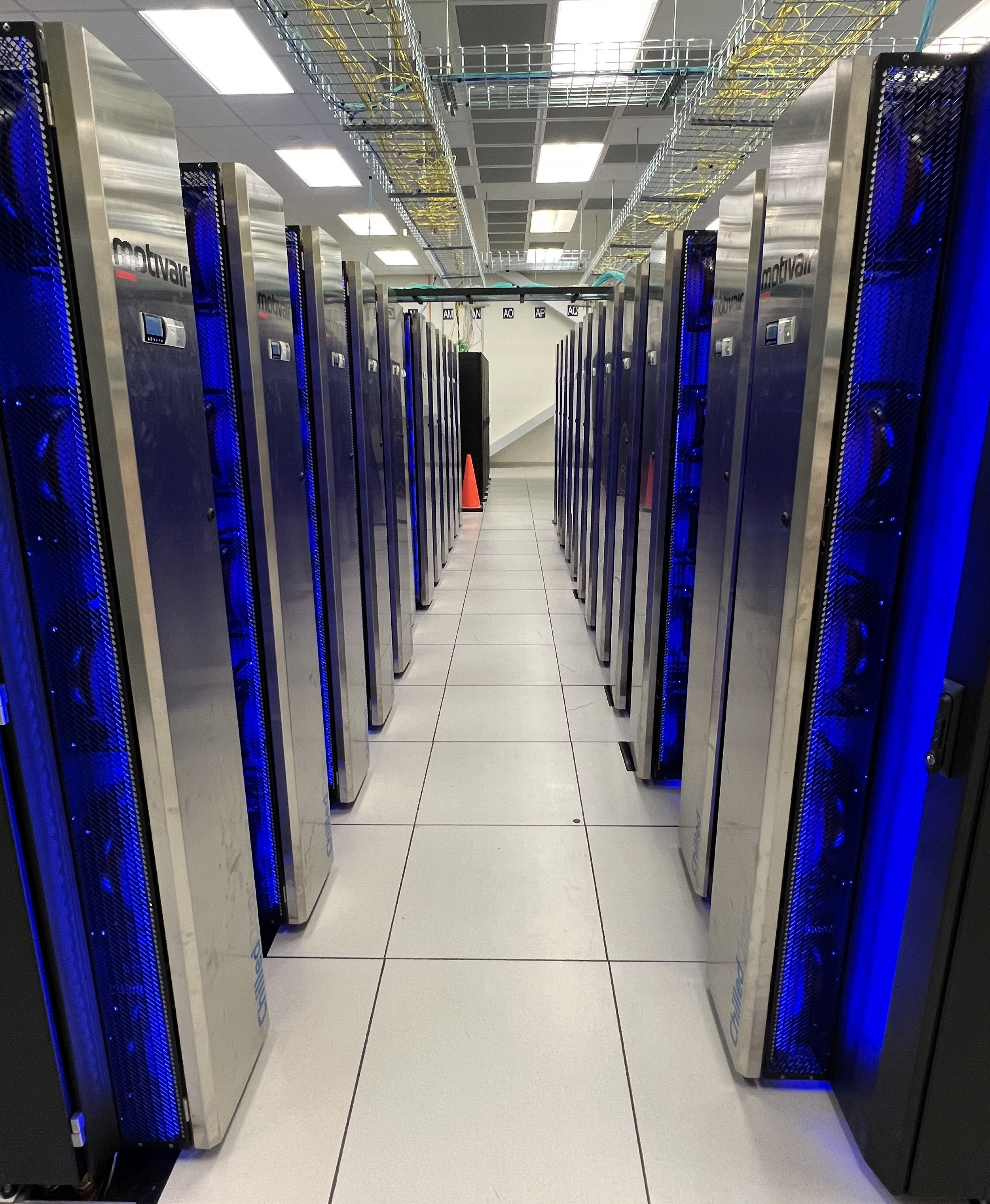

Ursa is located at the NOAA Environmental Security Computing Center (NESCC), in Fairmont, West Virginia.

Getting Started with Ursa

Log into your NOAA Google account, and you can view a slide presentation introducing Ursa. Log into your NOAA Google account, and you can also review a recorded version of the presentation.

Ursa System Configuration

	Compute System	GPU System
CPU Type	AMD Genoa 9654: 96 cores/12 channels to memory	AMD Genoa 9654: 96 cores/12 channels to memory
CPU Speed (GHz)	2.4 GHz	2.4 GHz
Compute Nodes	576	58
Cores/Node	192	192
Total Cores	110,592	11,136
Memory/Core (GB)	2	2
OS	Rocky 9	Rocky 9
CPU Peak Performance	4.25 PFlops	0.43 PFlops
Interconnect	NDR-200 IB	NDR-200 IB
Total Disk Capacity	>100 PB, (shared with Hera)	>100 PB, (shared with Hera)
Total Ave Disk Performance	>1000 GB/s	>1000 GB/s
GPU Type	N/A	NVIDIA H100-NVL
GPU’s/node	N/A	2
Memory/GPU (GB)	N/A	94
Total GPU FLOPS (TFLOPS)	N/A	3.48 PFlops

Ursa Partitions

Partition	QOS Allowed	Billing TRES Factor	Description
u1-compute	batch,windfall, debug, urgent, long	100	General compute resource. Default if no partition is specified.
u1-h100	gpu, gpuwf	100	For jobs that require nodes with the Nvidia H-100 GPUs.
u1-gh	gpuwf	100	For jobs that require nodes with the Nvidia Grace-Hopper processors.
u1-mi300x	gpuwf	100	For jobs that require nodes with the AMD MI300X GPUs.
u1-service	batch, windfall	100	Serial jobs (max 64 cores and/or 250 GB of memory per user), with a 24 hr wall time limit. Jobs will be run on service nodes that have external network connectivity. Useful for data transfers or access to external resources like databases. If your workflow requires pushing or pulling data to/from the HSMS(HPSS), it should be run there. This partition is also a good choice for doing your compilations and builds of your applications and libraries rather than doing it on the login nodes.

See the Quality of Service (QOS) table for more information.

Ursa Front Ends and Service Partition

Ursa has 15 outward-facing nodes.

4 nodes will be (front-end) login/cron nodes interactive use:
- ufe01-ufe04, total of 768 cores for interactive use. See the Login (Front End) Node Usage Policy for important information about using Login nodes.
10 nodes will comprise the service partition:
- 3,840 cores total.
- Available via Slurm.
- Target for compilation and data transfer jobs.
- Target for scrontab jobs (Scrontab is preferred for recurring jobs).
1 node is available for ecflow
- uecflow01

Using GPU Resources on Ursa

Ursa has one production GPU partition (u1-h100) and two exploratory GPU partitions (u1-gh and u1-mi300x). See the table above for details.

Partition u1-h100: There are 58 nodes, each with 192 AMD cpu cores, 2 NVIDIA H100 GPUs with 94GB of memory/GPU. This partition is accessible from the gpu and gpuwf QOS’s. For billing and accounting: one H100 gpu-hour will count as 192/2=96 cpu core-hours.

In order to have priority access to the H100 GPU resources you will need a GPU specific project allocation. Please contact your PI or Portfolio Manager to get a GPU specific allocation.

All projects with a CPU project allocation on Ursa have windfall access to the H100 GPU resources, and conversely all users with GPU specific project allocations have windfall access to the non-GPU resources.

Using H100 GPU Resources With a GPU allocation

If you have a H100 GPU specific project allocation on Ursa, you can access the H100 GPUs by submitting to the u1-h100 partition and gpu QOS as shown in the example below where 3 H100 GPUs are being requested:

sbatch -A mygpu_project -p u1-h100 -q gpu --gpus=h100:3 my_ml.job

Using H100 GPU Resources Without a GPU allocation

Users that do not have H100 GPU specific project allocations on Ursa can access the H100 GPU resources at windfall priority. This means that users can submit jobs to the system, but they will only run when the resources are not being used by projects that do have a H100 GPU specific project allocation. This is helpful for users who are interested in exploring the GPU resources for their applications. To use the system in this mode please submit the jobs to the u1-h100 partition and gpuwf QOS as shown in the example below where 2 H100 GPUs are being requested:

sbatch -A mycpu_project -p u1-h100 -q gpuwf --gpus=h100:2 my_ml.job

Using the Exploratory GPU Resources

In addition to the NVIDIA H100 GPU system (Partition: u1-h100), two new small GPU exploratory systems (partitions) with the newer GPU types are available for experimentation. These systems are connected to the Ursa IB network and have access to the Ursa file systems. There are no allocations or fairshare priority for these partitions; therefore all projects with access to Ursa have equal access (first come first served) to these partitions via the gpuwf QOS.

To access these nodes, login to Ursa and submit an interactive batch job requesting these GPU resources. Once you have an interactive shell, you can compile and run your applications on those nodes. Please keep in mind that the CPUs on the exploratory GPU resources are different from the CPUs in the production system. Vendor provided software is available by loading the appropriate modules. Please run the module spider command to see the list of modules available.

Description of the two exploratory systems:

Partition: u1-gh: There are 8 Grace Hopper nodes, each with one NVIDIA GH200 Grace Hopper Superchip with NVIDIA software. The CPU part of this superchip is an ARM processor with 72 cpu cores and approximately 213 GB of RAM. Click the NVIDIA GH200 for more detailed information. For billing and accounting: one grace hopper gpu-hour will count as 72 cpu core-hours.
Partition: u1-mi300x. There are 3 nodes, each with 96 Intel cpu cores, 8 AMD Mi300x APUs each with 192 GB of RAM AMD ROCm software. Click AMD MI300X for more detailed information. For billing and accounting: one mi300x gpu-hour will count as 96/8=12 cpu core-hours.

Run one of the following commands to get interactive access to these nodes:

salloc -A mygpu_project -t 480 -p u1-gh     -q gpuwf --gpus=gh200:1
salloc -A mygpu_project -t 480 -p u1-mi300x -q gpuwf --gpus=mi300x:2

In the examples above, the first example requests one node with one GH200 GPU and the second example requests one node with two MI300X GPUs.

Ursa Software Stack

Ursa OS is Rocky 9.4, similar to MSU systems (Rocky 9.1) whereas Hera/Jet are Rocky 8.
Module layout is more akin to what you see on MSU systems; installed using spack.
- Please run the module spider command to see all the available modules!
Compilers: Intel’s oneapi, Nvidia’s nvhpc, and AMD’s AOCC compilers are available.
MPIs: Intel MPI from Intel, HPC-X MPI from Nvidia, and openMPI implementations are available.
- We have seen much better performance and stability with HPC-X in our testing of communication intensive benchmarks as it is optimized to take advantage of the NDR-200 IB network more effectively.
An Intel stack is in place. Other stacks will be considered if requested.

Ursa HPFS File Systems

Ursa has the following three High Performance File Systems (HPFS) available: /scratch[3,4,5].

Note

While the /scratch[3,4] file systems are shared between Ursa and Hera, /scratch5 is only available on Ursa.

Caution

Please note that the HPFS scratch file systems are NOT backed up!

The /scratch[3,4] file systems are Lustre file systems with project based disk space quotas for routine work.

The /scratch5 file system is a new VAST file system, which offers different technology from the /scratch[3,4] Lustre file systems. This is an all-flash filesystem designed to perform well for a variety of workloads and files of varying size.

The VAST file system is significantly more expensive per PB than the Lustre file systems, and we currently do not know what the performance implications of this file system are as opposed to the Lustre file system on your applications. Therefore, currently only two projects, rstprod and public, have project based quotas on the VAST file system. However, all other Ursa projects and users may explore the suitability of this new file system for your applications via the purged directory, /scratch5/purged.

Warning

This directory will be purged of all files that have not been accessed in the past 90 days. Depending on usage we will adjust the purge schedule as needed, preceded by a user notification. Users under the /purged directory have a quota of 250 TB.

If you want to use /scratch5, create and use a single sub-directory under the /purged directory (/scratch5/purged/$USER), with the directory name the same as the First.Last of your NOAA email.

Since /scratch5 is a new and different technology from our previous Lustre file systems, the RDHPCS program would appreciate insight into your experiences with it. In particular, we would like to know how performance has been affected (both positively or negatively) and how stable and consistent the file system is for your applications. Please send this information via an RDHPCS Ursa help ticket with the subject of /scratch5 performance results.

If the performance of your application suite is significantly improved using the VAST File system vs the Lustre file systems and you would like your project to have non-purged quota project space on /scratch5, please have your Portfolio Manager submit a request via a RDHPCS Ursa Help ticket. Include the amount of disk space you require and a detailed justification, including a performance comparison for your application suite between /scratch[3,4] and /scratch5.

Usage/Quota information for `/scratch[3,4]` file systems

The new file systems /scratch[3,4] on Ursa and Hera have a performance improving feature called “Hot Pools”. With Hot Pools, the first 1 GB of each file is written to the fast SSD (hot) tier, by default. After some time, usually 10 to 15 minutes, the file is mirrored to the slower HDD (cold) tier and will be double counted as usage toward your quota. As long as the file is actively used, it will stay on both tiers (hot and cold). Unused files are removed from the hot tier and reside only on the cold tier.

As a result the reported usage for the first 1 GB of active files may be doubled.

Cron and Scrontab Services

On Ursa both cron and scrontab services are available. We strongly recommend using scrontab instead of cron whenever possible. For information on how to use scrontab please see scrontab.

Getting Help

For any Ursa or Rhea issue, open a help request.
